DCL500/Z充电式吸尘机
| 充电式吸尘机 | DCL500/Z |
|
| 图号 | 部件号 | 部件名称/注解 | 数量 |

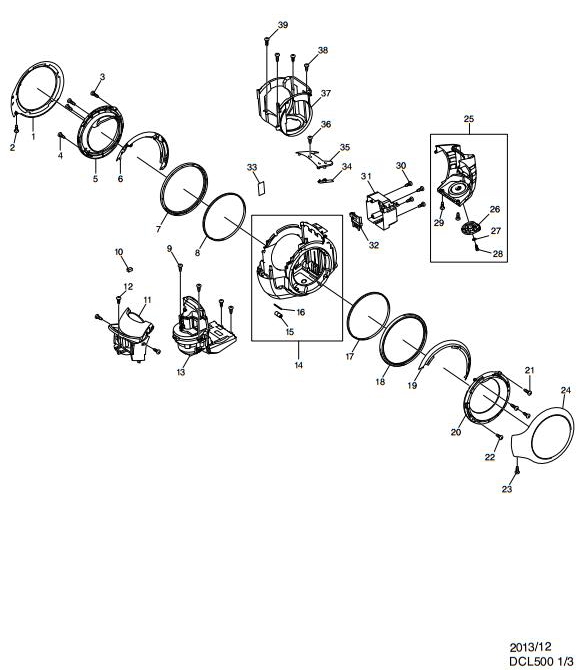

| 1 | SH00000011 | 机身环 L | 1 |
| 2 | SH00000021 | 螺丝 M4X12 | 1 |
| 3 | SH00000020 | 螺丝 M4X16 | 2 |
| 4 | SH00000019 | 螺丝 M4X12 | 2 |
| 5 | SH00000009 | 轮盖 L | 1 |
| 6 | SH00000006 | 上机壳 L | 1 |
| 7 | SH00000002 | 轮底环 | 1 |
| 8 | SH00000003 | 轮导环 | 1 |
| 9 | SH00000019 | 螺丝 MX12 | 4 |
| 10 | SH00000051 | 铁氧体 | 1 |
| 11 | SH00000015 | 导管盖总成 | 1 |
| 12 | SH00000019 | 螺丝 M4X12 | 3 |
| 13 | SH00000061 | 电子装置 | 1 |
| 15 | SH00000057 | 辊 D | 1 |
| 16 | SH00000047 | 辊轴 D | 1 |
| 17 | SH00000003 | 轮导环 | 1 |
| 18 | SH00000002 | 轮底环 | 1 |
| 19 | SH00000007 | 上机壳 R | 1 |
| 20 | SH00000010 | 轮盖 R | 1 |
| 21 | SH00000020 | 螺丝 M4X16 | 2 |
| 22 | SH00000019 | 螺丝 M4X12 | 2 |
| 23 | SH00000021 | 螺丝 M4X12 | 1 |
| 24 | SH00000012 | 机身环 R | 1 |
| 25 | SH00000016 | 排气罩总成 | 1 |
| 包含零件.26-29 | 0 | ||
| 26 | SH00000048 | 释放架总成 | 1 |
| 27 | SH00000049 | 垫圈 | 1 |
| 28 | SH00000019 | 螺丝 M4X12 | 1 |
| 29 | SH00000021 | 螺丝 M4X12 | 2 |
| 30 | SH00000019 | 螺丝 M4X12 | 4 |
| 31 | SH00000018 | 电池座 | 1 |
| 32 | 643899-6 | 电池接板 | 1 |
| 33 | SH00000004 | 密封带 | 1 |
| 34 | SH00000017 | LED电路 | 1 |
| 35 | SH00000014 | LED面板组件 | 1 |
| 36 | SH00000019 | 螺丝 MX12 | 1 |
| 37 | SH00000008 | 内机壳 | 1 |
| 38 | SH00000021 | 螺丝 M4X12 | 3 |
| 39 | SH00000022 | 螺丝 M4X16 | 1 |

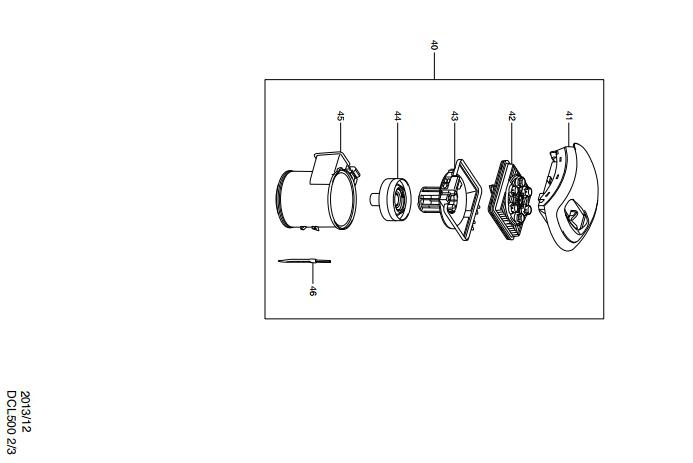

| 40 | SH00000024 | 尘杯总成 | 1 |
| 包含零件.40-46 | 0 | ||
| 41 | SH00000026 | 尘杯盖 | 1 |
| 42 | SH00000027 | 尘杯过滤器 | 1 |
| 43 | SH00000028 | 尘杯架 | 1 |
| 44 | SH00000029 | 尘板 | 1 |
| 45 | SH00000031 | 低尘杯组件 | 1 |
| 46 | SH00000032 | 清洁刷 | 1 |

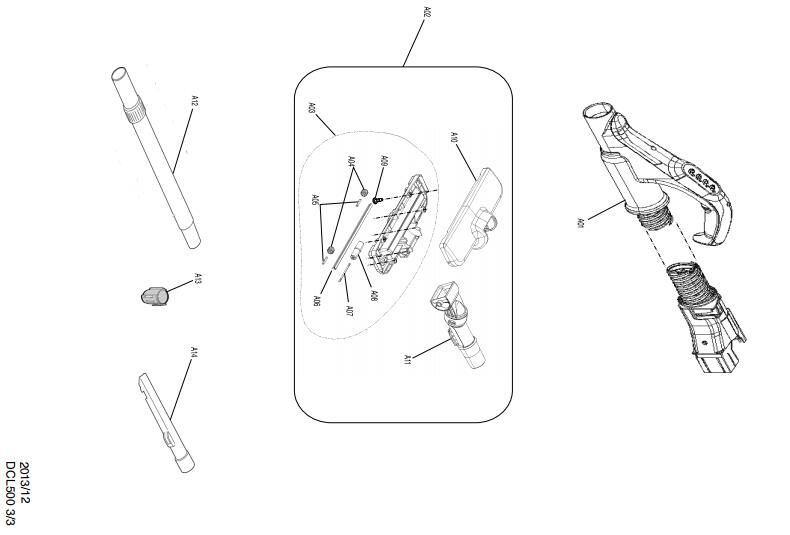

| A01 | SH00000034 | 软管总成 | 1 |
| A02 | SH00000058 | 地板吸嘴总成 | 1 |
| 包含零件.A03,A10,A11 | 0 | ||
| A03 | SH00000036 | 下吸嘴总成 | 1 |
| 包含零件.A04-A09 | 0 | ||
| A04 | SH00000053 | 辊 S | 1 |
| A05 | SH00000054 | 辊轴 | 1 |
| A06 | SH00000052 | 刷 | 1 |
| A07 | SH00000056 | 辊轴 D | 1 |
| A08 | SH00000055 | 辊 D | 1 |
| A09 | SH00000039 | 螺丝 M4X14 | 1 |
| A10 | SH00000038 | 下吸嘴 | 1 |
| A11 | SH00000059 | 导管组件 | 1 |
| A12 | SH00000060 | 螺旋管总成 | 1 |
| A13 | SH00000041 | 软管 | 1 |
| A14 | SH00000042 | T缝隙吸嘴 | 1 |
| A15 | SH00000043 | 镜垫袋 | 1 |
| A16 | 166124-3 | 肩带 | 1 |
| C01 | SH00000045 | 包装盒 | 1 |
