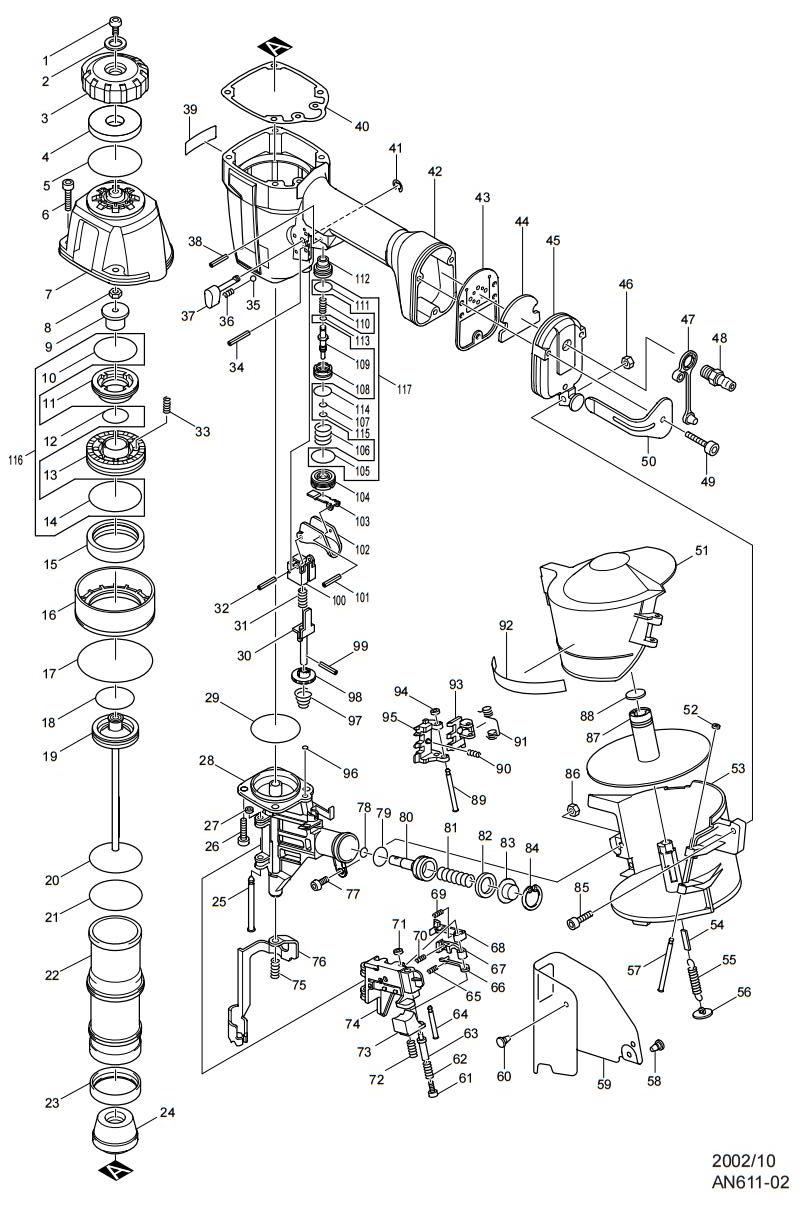

AN611卷钉枪
| 卷钉枪 | AN611 |
|
| 图号 | 部件号 | 部件名称 | 数量 |
| 1 | 266169-2 | 内六角螺丝 M5X12 | 1 |
| 2 | 267171-8 | 平垫圈 6 | 1 |
| 3 | 419460-9 | 消音片盖 | 1 |
| 4 | 423300-5 | 消音片 | 1 |
| 5 | 213604-1 | O形圈 50 | 1 |
| 6 | 922242-5 | 内六角螺丝 M5X25 | 4 |
| 7 | 317287-0 | 顶帽 | 1 |
| 8 | 931202-6 | 六角螺母 M5 | 1 |
| 9 | 421573-4 | 衬垫 | 1 |
| 10 | 213513-4 | O形圈 39 | 1 |
| 11 | 416234-9 | 分离器 | 1 |
| 12 | 213393-8 | O形圈 23 | 1 |
| 13 | 416236-5 | 头阀 | 1 |
| 14 | 213616-4 | O形圈 48 | 1 |
| 15 | 421576-8 | 阀门片 | 1 |
| 16 | 416235-7 | 离析器 | 1 |
| 17 | 213706-3 | O形圈 67 | 1 |
| 18 | 213521-5 | O形圈36 | 1 |
| 19 | 150744-3 | 驱动总成 | 1 |
| 20 | 213608-3 | O形圈47 | 1 |
| 21 | 213615-6 | O形圈 46 | 1 |
| 22 | 331567-0 | 汽缸 | 1 |
| 23 | 323716-3 | 导线垫 | 1 |
| 24 | 421575-0 | 衬垫 | 1 |
| 25 | 268025-2 | 销 5 | 1 |
| 26 | 265844-7 | 内六角螺栓 M6X20 | 4 |
| 27 | 262054-7 | 树脂环 3 | 1 |
| 28 | 310169-5 | 驱动导件 | 1 |
| 29 | 213569-7 | O形圈 45 | 1 |
| 30 | 310055-0 | 制动器 | 1 |
| 31 | 233197-2 | 压簧 7 | 1 |
| 32 | 951075-1 | 弹性销 3-28 | 1 |
| 33 | 233199-8 | 压簧 3 | 8 |
| 34 | 951075-1 | 弹性销 3-28 | 1 |
| 35 | 216008-6 | 钢球4 | 1 |
| 36 | 231236-2 | 压簧 3 | 1 |
| 37 | 162189-3 | 锁定销 6 | 1 |
| 38 | 258010-3 | 弹性销 2.5-25 | 2 |
| 40 | 162190-8 | 顶帽垫片 | 1 |
| 41 | 961011-9 | 止动环 | 1 |
| 42 | 151592-3 | 机壳 | 1 |
| 42 | 421527-1 | 把手 | 1 |
| 42 | 421643-9 | 机壳缓冲片 R | 1 |
| 42 | 421644-7 | 机壳缓冲片L | 1 |
| 43 | 162198-2 | 进气盖垫 | 1 |
| 44 | 415784-1 | 进气滤网 | 1 |
| 45 | 316887-3 | 进气盖 | 1 |
| 46 | 252103-8 | 六角锁紧螺母M5 | 1 |
| 47 | 286260-0 | 帽9 | 1 |
| 49 | 922252-2 | 内六角螺栓 M5X30 | 3 |
| 50 | 344267-3 | 挂钩 | 1 |
| 51 | 416237-3 | 钉仓帽 | 1 |
| 52 | 262054-7 | 树脂环 3 | 1 |
| 53 | 154988-7 | 钉仓 | 1 |
| 54 | 423232-6 | 橡胶盘 6-20 | 1 |
| 55 | 231791-4 | 拉簧 5 | 1 |
| 56 | 414934-5 | 固定帽 | 1 |
| 57 | 268026-0 | 销 4 | 1 |
| 58 | 421418-6 | 橡胶销 9.5 | 1 |
| 59 | 413069-9 | 盖 | 1 |
| 60 | 421418-6 | 橡胶销 9.5 | 1 |
| 61 | 266167-6 | 内六角螺栓 M4X10 | 1 |
| 62 | 233201-7 | 压缩弹簧 6 | 1 |
| 63 | 323713-9 | 锁定销 | 1 |
| 64 | 268024-4 | 销 4 | 1 |
| 65 | 233101-1 | 压簧 4 | 1 |
| 66 | 344633-4 | 止动爪 | 1 |
| 67 | 310044-5 | 固定器 | 1 |
| 68 | 310045-3 | 臂 | 1 |
| 69 | 233101-1 | 压簧 4 | 1 |
| 70 | 233101-1 | 压簧 4 | 1 |
| 71 | 262054-7 | 树脂环 3 | 1 |
| 72 | 233204-1 | 压缩弹簧 5 | 1 |
| 73 | 310050-0 | 锁定杆 | 1 |
| 74 | 310168-7 | 门户 | 1 |
| 75 | 233127-3 | 压缩弹簧 7 | 1 |
| 76 | 345640-0 | 连接臂 | 1 |
| 77 | 265487-5 | 半圆头螺丝 M5X16 | 1 |
| 78 | 213054-0 | O形圈 9 | 1 |
| 79 | 213261-5 | O形圈 17 | 1 |
| 80 | 323714-7 | 活塞 | 1 |
| 81 | 233198-0 | 压缩弹簧 9 | 1 |
| 82 | 262075-9 | 橡胶环 16 | 1 |
| 83 | 344452-8 | 埋头垫圈 5 | 1 |
| 84 | 962103-7 | 挡圈 R-24 | 1 |
| 85 | 922231-0 | 内六角螺栓 M5X20 | 1 |
| 86 | 252103-8 | 六角锁紧螺母M5 | 1 |
| 87 | 416238-1 | 转换盘 | 1 |
| 88 | 414934-5 | 固定帽 | 1 |
| 89 | 268027-8 | 销 4 | 1 |
| 90 | 233081-1 | 压缩弹簧 3 | 1 |
| 91 | 231632-4 | 拉簧 6 | 1 |
| 93 | 310047-9 | 输送爪 R | 1 |
| 94 | 262054-7 | 树脂环 3 | 1 |
| 95 | 310046-1 | 输送爪F | 1 |
| 96 | 213017-6 | O形圈 6 | 1 |
| 97 | 231978-8 | 锥形弹簧 9-16 | 1 |
| 98 | 310056-8 | 调节器 | 1 |
| 99 | 951010-9 | 弹性销 2-14 | 1 |
| 100 | 344895-4 | 固定器 | 1 |
| 101 | 258004-8 | 弹性销 2.5-16 | 1 |
| 102 | 415790-6 | 板机 | 1 |
| 103 | 344265-7 | 惰轮 | 1 |
| 104 | 323727-8 | 气门阀 | 1 |
| 105 | 213315-8 | O形圈 19 | 1 |
| 106 | 233136-2 | 压缩弹簧 14 | 1 |
| 107 | 213023-1 | O形圈 4 | 1 |
| 108 | 415789-1 | 导阀 | 1 |
| 109 | 322993-4 | 气门杆 | 1 |
| 110 | 233189-1 | 压缩弹簧 6 | 1 |
| 111 | 213162-7 | O型圈 14 | 1 |
| 112 | 416379-3 | 气门导线件 | 1 |
| 113 | 213023-1 | O形圈 4 | 1 |
| 114 | 213162-7 | O型圈 14 | 1 |
| 115 | 213023-1 | O形圈 4 | 1 |
| A01 | 192517-8 | 护目镜 | 1 |
| A01 | 195246-2 | 护目镜 | 1 |
| A02 | 181434-7 | 润滑油 30CC | 1 |
| A04 | 783202-0 | 六角扳手4 | 1 |
| A05 | 824490-1 | 塑料携带箱 | 1 |
| A05 | 186347-7 | 固定板 | 1 |
| E02 | 243062-7 | 气塞 | 1 |
