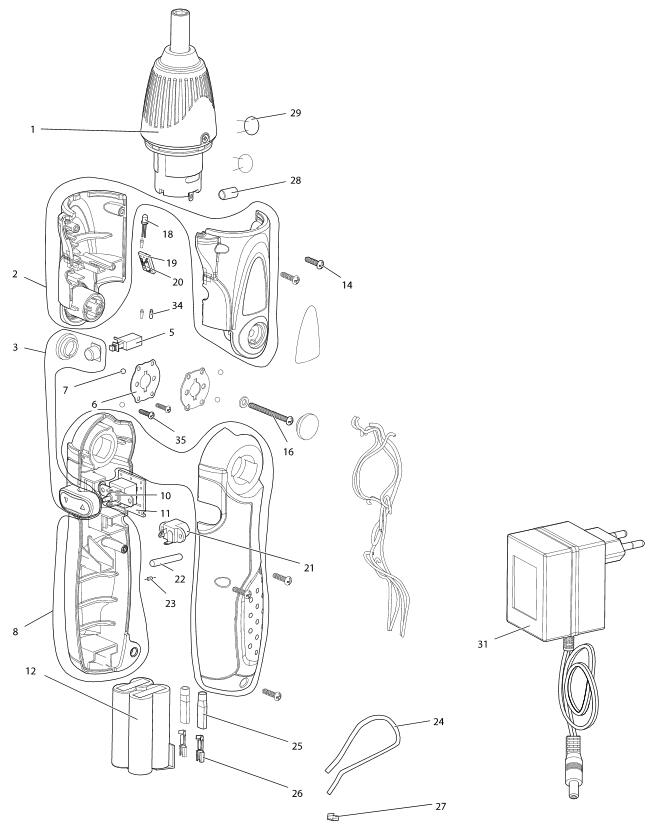

6723DW充电式螺丝起子机
| 充电式螺丝起子机 | 6723DW |
|
| 图号 | 部件号 | 部件名称 | 数量 |
| 1 | TP00000095 | 电机总成 | 1 |
| 2 | TP00000096 | 机壳组件 | 1 |
| 3 | TP00000097 | 按钮盖 | 1 |
| 5 | TL00000005 | 开关 | 1 |
| 6 | TL00000006 | 弹性夹 | 2 |
| 7 | TL00000007 | 钢珠 | 4 |
| 8 | TP00000098 | 手柄组件 | 1 |
| 10 | TP00000099 | 正反转开关 | 1 |
| 11 | TL00000011 | 电路板 | 1 |
| 12 | TP00000164 | 电池 | 1 |
| 14 | TL00000014 | 螺丝 3.0X10 | 5 |
| 16 | TL00000016 | 螺丝 3.5X26 | 1 |
| 18 | TP00000075 | LED灯 | 1 |
| 19 | TL00000018 | 电路板 | 1 |
| 20 | TL00000019 | 电阻 | 1 |
| 21 | TL00000020 | DC插座 | 1 |
| 22 | TL00000028 | 缩管 | 1 |
| 23 | TL00000029 | 二极管 4001 | 1 |
| 24 | TL00000021 | 手腕带 | 1 |
| 25 | TL00000030 | 绝缘管 | 2 |
| 26 | TL00000031 | 接插杆 | 2 |
| 27 | TL00000022 | 绳夹 | 1 |
| 28 | TL00000026 | 磁杆 | 1 |
| 29 | TL00000027 | 电容 | 2 |
| 31 | TP00000218 | 充电器 | 1 |
| 34 | TP00000100 | 缩管 | 2 |
| 35 | TP00000101 | 螺丝 2.6X8 | 4 |
