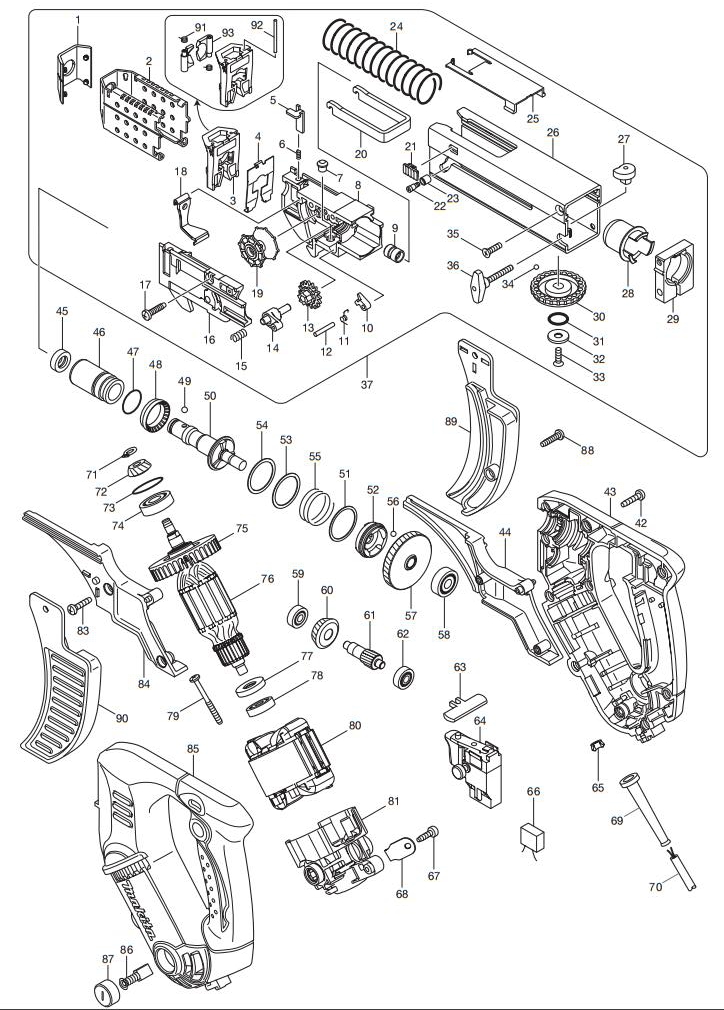

6842自动送料螺丝枪
| 自动送料螺丝枪 | 6842 |
|
| 图号 | 附图号 | 部件号 | 部件名称/注解 | 数量 | 备注 |
| 1 | 424043-2 | 帽 | 1 | ||
| 2 | 345839-7 | 制动板 | 1 | ||
| 3 | 140493-0 | 导盒总成 | 1 |
包含零件.4，91， 92，93 |
|
| 4 | 346269-5 | 导板 | 1 | ||
| 5 | 345837-1 | 杆 | 2 | ||
| 6 | 233211-4 | 压簧2 | 2 | ||
| 7 | 256451-7 | 销子6 | 1 | ||
| 8 | 450107-6 | 送料盒 | 1 | ||
| 9 | 257685-5 | 衬套5 | 1 | ||
| 10 | 310062-3 | 限动块 | 1 | ||
| 11 | 231636-6 | 扭簧4 | 1 | ||
| 12 | 256158-5 | 销子 3 | 1 | ||
| 13 | 226344-2 | 直齿轮16 | 1 | ||
| 14 | 158374-4 | 棘轮臂 | 1 | ||
| 15 | 233212-2 | 压簧6 | 1 | ||
| 16 | 158375-2 | 盒盖 | 1 | ||
| 17 | 265995-6 | 自攻螺丝 PT4X18 | 1 | ||
| 18 | 162201-9 | 防尘盖 | 1 | ||
| 19 | 416518-5 | 带轮 | 1 | ||
| 20 | 345838-9 | 盘 | 1 | ||
| 21 | 450111-5 | 限动块 | 2 | ||
| 22 | 265177-0 | 螺丝 M3X5 | 1 | ||
| 23 | 257764-9 | 衬套 4 | 1 | ||
| 24 | 234031-9 | 压簧 23 | 1 | ||
| 25 | 450114-9 | 箱盖 | 1 | ||
| 26 | 158377-8 | 罩壳 | 1 | ||
| 27 | 310237-4 | 拨销 | 1 | ||
| 28 | 450110-7 | 绝缘套管 | 1 | ||
| 29 | 318181-9 | 夹钳 | 1 | ||
| 30 | 417056-0 | 盘 42 | 1 | ||
| 31 | 213107-5 | O形圈 12 | 1 | ||
| 32 | 267201-5 | 平垫圈6 | 1 | ||
| 33 | 912117-6 | 沉头螺丝 M4X12 | 1 | ||
| 34 | 216001-0 | 钢珠 3.5 | 1 | ||
| 35 | 912117-6 | 沉头螺丝 M4X12 | 3 | ||
| 36 | 265779-2 | 螺丝 M3X28 | 1 | ||
| 37 | 195184-8 | 罩壳总成 | 1 | 包含零件.1-36 | |
| 42 | 266045-0 | 自攻螺丝 4X20 | 10 | ||
| 43 | 188305-9 | 机壳 | 1 | 包含零件.85 | |
| 44 | 188303-3 | 导杆 | 1 | 包含零件.84 | |
| 45 | 421467-3 | 防尘盖 | 1 | ||
| 46 | 214172-7 | 平面轴承 14 | 1 | ||
| 47 | 213262-3 | O形圈 18 | 1 | ||
| 48 | 421927-5 | 衬套 20 | 1 | ||
| 49 | 216001-0 | 钢珠 3.5 | 1 | ||
| 50 | 324807-3 | 主轴 A | 1 | ||
| 51 | 267332-0 | 平垫圈 26 | 1 | ||
| 52 | 223169-5 | 离合凸轮 C | 1 | ||
| 53 | 267331-2 | 平垫圈25 | 1 | ||
| 54 | 267331-2 | 平垫圈25 | 1 | ||
| 55 | 234017-3 | 压簧 25 | 1 | ||
| 56 | 216008-6 | 钢球4 | 3 | ||
| 57 | 226658-9 | 斜齿轮 57 | 1 | ||
| 58 | 211034-0 | 轴承608 | 1 | ||
| 59 | 211014-6 | 轴承 606 | 1 | ||
| 60 | 227528-5 | 螺旋伞齿轮 22 | 1 | ||
| 61 | 226668-6 | 斜齿轮 13 | 1 | ||
| 62 | 211014-6 | 轴承 606 | 1 | ||
| 63 | 419304-3 | 转换杆 | 1 | ||
| 64 | 650590-9 | 开关 SGEL206CR-1 | 1 | ||
| 65 | 346498-0 | 螺母和组件 M5 | 1 | ||
| 66 | 645253-0 | 电容 | 1 | ||
| 67 | 266192-7 | 自攻螺丝 4X14 | 1 | ||
| 68 | 687169-3 | 张紧片 | 1 | ||
| 69 | 682566-8 | 电源线护套 10－110 | 1 | ||
| 70 | 694424-6 | 电源线 1.0-2.5 | 1 | ||
| 71 | 961002-0 | 挡圈 S－6 | 1 | ||
| 72 | 227527-7 | 螺旋伞齿轮 15 | 1 | ||
| 73 | 213380-7 | O形圈 24 | 1 | ||
| 74 | 211061-7 | 轴承 6000LLB | 1 | ||
| 75 | 241869-5 | 风叶55 | 1 | ||
| 76 | 515713-5 | 转子 | 1 | 包含零件.74，75，77，78 | |
| 77 | 681652-2 | 绝缘垫圈 | 1 | ||
| 78 | 211021-9 | 轴承 607LLB | 1 | ||
| 79 | 266069-6 | 自攻螺丝 4X45 | 2 | ||
| 80 | 639372-2 | 定子 | 1 | ||
| 81 | 158380-9 | 碳刷座组件 | 1 | ||
| 83 | 265995-6 | 自攻螺丝 PT4X18 | 2 | ||
| 84 | 188303-3 | 导杆 | 1 | 包含零件.44 | |
| 85 | 188305-9 | 机壳 | 1 | 包含零件.43 | |
| 86 | 191940-4 | 碳刷 CB－411 | 1 | ||
| 87 | 643928-5 | 碳刷盖 | 2 | ||
| 88 | 265995-6 | 自攻螺丝 PT4X18 | 2 | ||
| 89 | 188310-6 | 导向杆 | 1 | 包含零件.90 | |
| 90 | 188310-6 | 导向杆 | 1 | 包含零件.89 | |
| 91 | 233567-5 | 扭簧 4 | 2 | ||
| 92 | 268188-4 | 销 2 | 2 | ||
| 93 | 310282-9 | 导向板 | 2 | ||
| 94 | 125809-0 | 送料箱组件 | 1 | 包含零件.1-35，19，22，23 | |
| A01 | 265734-4 | 螺丝 M5X13 | 1 | ||
| A02 | 345831-3 | 卡钩 | 1 | ||
| A03 | B-10481 | 十字改锥头NZPH2/162 | 1 | ||
| A04 | 824808-6 | 塑料携带箱 | 1 | ||
| A04 | C01 | 163455-1 | 固定板 | 2 | |
| A04 | C02 | 419360-3 | 把手 | 1 | |
| E01 | 689053-8 | 线耳保护器 | 2 |
