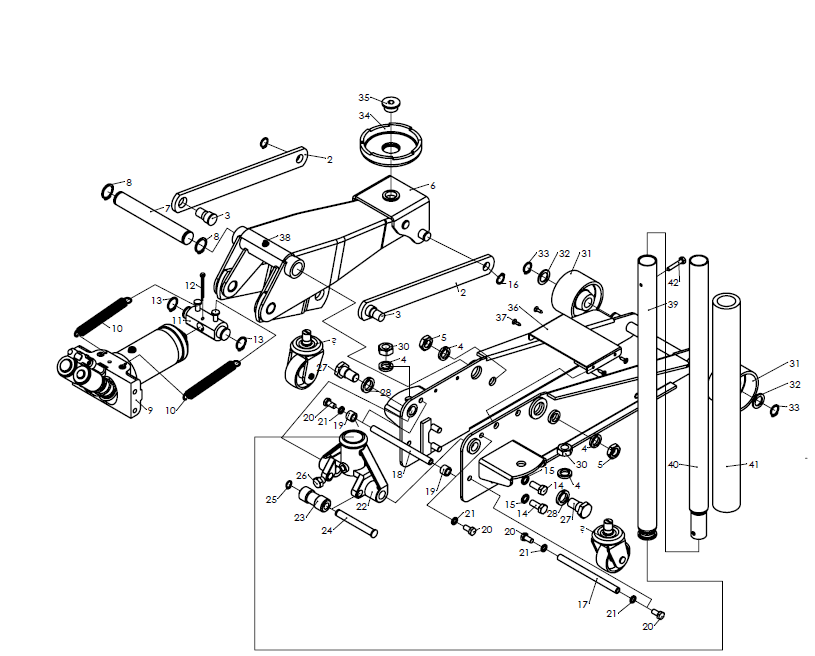

HFJ-30捷科3公吨卧顶爆炸图
| 项目 | 存货编码 | 存货名称 | 数量 |
| 1 | HFJ-25-1 | 墙板组 | 1 |
| 2 | HFJ-25-2 | 长连杆 | 2 |
| 3 | HFJ-25-3 | 长连杆链接螺栓 | 2 |
| 4 | HFJ-2025-1 | M16弹垫 | 4 |
| 5 | HFJ-2025-2 | M16扁螺母 | 2 |
| 6 | HFJ-25-4 | 起臂组 | 1 |
| 7 | HFJ-2025-3 | 起臂轴 | 1 |
| 8 | HFJ-2025-4 | 25 轴用挡圈 | 2 |
| 9 | HFJ-25-8 | 油缸阀体部件装备 | 1 |
| 10 | HFJ-2025-5 | 拉簧 | 2 |
| 11 | HFJ-2025-6 | 连接杆 | 1 |
| 12 | HFJ-2025-7 | 4*45开口销 | 1 |
| 13 | HFJ-2025-8 | 22轴用挡圈 | 2 |
| 14 | HFJ-2025-9 | M10*25外六角8.8级螺栓 | 4 |
| 15 | HFJ-2025-10 | M10弹垫 | 4 |
| 16 | HFJ-2025-11 | 16轴用挡圈 | 2 |
| 17 | HFJ-2025-12 | 后拉杆 | 1 |
| 18 | HFJ-2025-13 | 揿手挡轴 | 1 |
| 19 | HFJ-2025-14 | 揿手挡轴护套 | 2 |
| 20 | HFJ-2025-15 | M8*16外六角8.8级螺栓 | 4 |
| 21 | HFJ-2025-16 | M8弹垫 | 4 |
| 22 | HFJ-2025-17 | 揿手 | 1 |
| 23 | HFJ-2025-18 | 滚轮 | 1 |
| 24 | HFJ-2025-19 | 滚轮销轴 | 1 |
| 25 | HFJ-2025-20 | 12 轴用挡圈 | 1 |
| 26 | HFJ-2025-21 | 揿手手柄定位螺钉 | 1 |
| 27 | HFJ-2025-22 | 揿手链接螺栓 | 2 |
| 28 | HFJ-2025-23 | M18弹垫 | 2 |
| 29 | HFJ-2025-24 | 后轮组 | 2 |
| 30 | HFJ-2025-25 | M16螺母 | 2 |
| 31 | HFJ-25-5 | 前轮 | 2 |
| 32 | HFJ-2025-26 | M18平垫 | 2 |
| 33 | HFJ-2025-27 | 18轴用挡圈 | 2 |
| 34 | HFJ-25-6 | 托盘 | 1 |
| 35 | HFJ-25-7 | 托盘固定螺丝 | 1 |
| 36 | HFJ-2025-28 | 盖板 | 1 |
| 37 | HFJ-2025-29 | M5*12自攻螺丝 | 4 |
| 38 | HFJ-2025-30 | M6 黄油嘴 | 1 |
| 39 | HFJ-2025-31 | 前节手柄 | 1 |
| 40 | HFJ-2025-32 | 后节手柄 | 1 |
| 41 | HFJ-2025-33 | 手柄胶套 | 1 |
| 42 | HFJ-2025-34 | M6*35外六角8.8级螺栓 | 1 |
